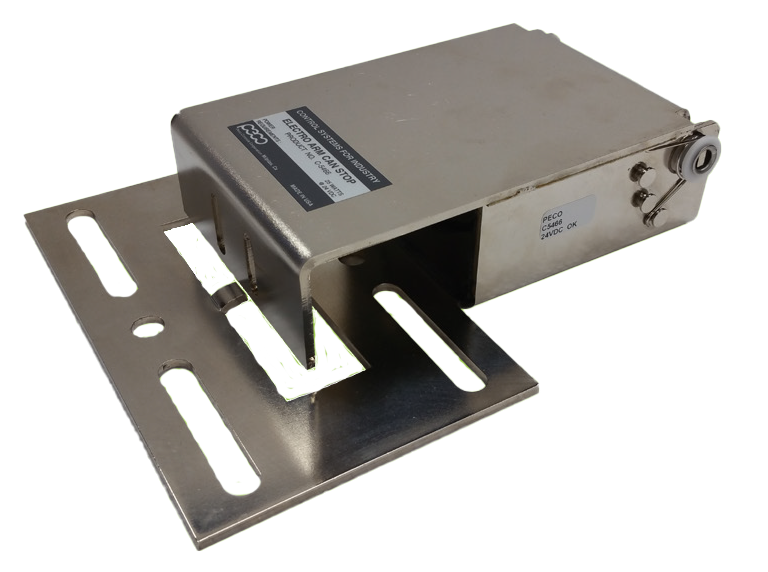

Container Stops

Available in normally open or normally closed models. In the normally open (Electro-Arm) configuration, the actuator finds and divides containers with an increasing force which reaches its maximum as containers build up behind the stop when power is applied. The stop returns to the open state when power is taken off. In the normally closed (Auto-Stop) configuration a permanent magnet holds the armature and container in place. On application of power the actuator is withdrawn and the stop opens, allowing containers to flow. The stop returns to the closed state after power is taken off.

Features

Electro-Mechanical Stops

Available in AC or DC to regulate the flow of almost any single file container line. Proven electromagnetic technology ensures both reliable and economical operation. 24 VDC models meet CE specifications for low voltage equipment in production areas.

Typical Applications

peco-inspx
Integrates with all Peco InspX manufactured machines

WHAT MAKES PECO INSPX X-RAY SYSTEMS DIFFERENT?

Continuous research and development drives engineering excellence for all Peco InspX inspection systems. If you have an application that may benefit from Peco InspX's inspection expertise, please contact us to learn more about how we can be of assistance. All inspection systems are delivered with four key features:

solution
High Speed Operations

Manufacturers can easily operate at speeds over 1000 containers per minute - Peco InspX offers inspection, checkweighing and fill monitoring capable to match such performance.

solution
Service

Peco InspX strives to deliver the very best service in the industry and the quality of our service is well recognized across our global customer base.

solution
Software

Our inspection and detection software is custom designed constantly enhanced for technical excellence at our R&D facility in Silicon Valley.

solution
Made in America

All systems are manufactured in our newly expanded facility in Modesto, California.

Tech Specs

Model

Open/Closed Container Stops

POWER REQUIREMENTS

120 VAC @ 240 mA/60 Hz

230 VAC @ 120 mA/60 Hz

24 VDC @ 1.2 A

OPERATING TEMPERATURE RANGE

-15° to 60°C (0° to 140°F)

HOLDING FORCE

25 foot pounds

CLOSING TIME

100 milliseconds

OPENING TIME

225 milliseconds

Options

Custom Engineering Solutions

Because Peco-InspX is a dedicated manufacturer of automated inspection equipment, we bring a wealth of engineering expertise on an almost unlimited number of inspection applications. If you have a unique inspection requirement, please talk to us.
