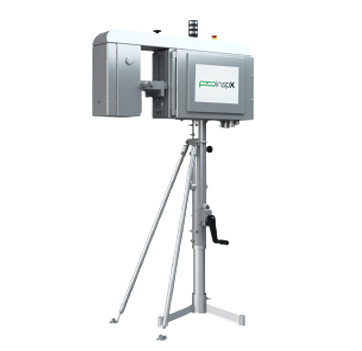

FillTrac

The FillTrac Fill Level Inspection System integrates Peco’s 40 year experience in fill level inspection with the latest in technology to provide the best inspection available in a compact, easy to use, and environmentally sound, design.

Features

Streamlined Installation

Industrial design allows for tool-less line installation over your conveyor, providing contactless inspection in a compact footprint

Fill Level Measurement

High precision fill-level and headspace monitoring

Real-Time Remote Support

Integrated wireless connectivity allows for secure remote support 24/7 globally. Peco InspX can resolve over 95% of customer issues with our powerful remote diagnostics software

Robust IT Security

Fully integrated end-to-end IT security offerings ensure your networks aren’t vulnerable and are defended from any outside threats.  Optional IoT module allows for seamless SCADA integration

No Requirement for Container Spacing

This inspection geometry does not require any container spacing between adjacent containers

High Reliability Non-Contact Inspection

Mounts over the top of the customer’s existing conveyor, eliminating conveyor transfers into the machine for inspection. This design minimizes risk against conveyor jams over transfer points

High Performance Generator

Features a high powered X-ray generator designed for continuous duty-cycle operation and no maintenance

Typical Applications

peco-inspx
Plastic/PET Containers
peco-inspx
Metal and Composite Cans
peco-inspx
Glass Containers
peco-inspx
Boxed Liquids (Juice/Soup)

WHAT MAKES PECO INSPX X-RAY SYSTEMS DIFFERENT?

Continuous research and development drives engineering excellence for all Peco InspX inspection systems. If you have an application that may benefit from Peco InspX's inspection expertise, please contact us to learn more about how we can be of assistance. All inspection systems are delivered with four key features:

solution
High Speed Operations

Manufacturers can easily operate at speeds over 1000 containers per minute - Peco InspX offers inspection, checkweighing and fill monitoring capable to match such performance.

solution
Service

Peco InspX strives to deliver the very best service in the industry and the quality of our service is well recognized across our global customer base.

solution
Software

Our inspection and detection software is custom designed constantly enhanced for technical excellence at our R&D facility in Silicon Valley.

solution
Made in America

All systems are manufactured in our newly expanded facility in Modesto, California.

Tech Specs

Architecture

X-ray or gamma based systems

Conveyor

No internal conveyor. Mounts over customer’s existing conveyor. No transfer points or product contact

X-ray Tube Configuration

High contrast X-ray tube or Isotope

Aperture Size

No limit on height, width: 6.0” (152.4mm) standard - specify with order

Environment

Standard: IP 65

Optional: Washdown/Corrosion resistant

Line Speed

Up to 3,000 containers per minute

Input Voltage

Available in 120 or 240 VAC options

Air Supply

80 psi @ 5 cfm (for ejection only)

Ambient Temperature

33°F – 113°F  (1°C – 45°C)

Container Ejection

Full range of high-speed ejection and diversion options available

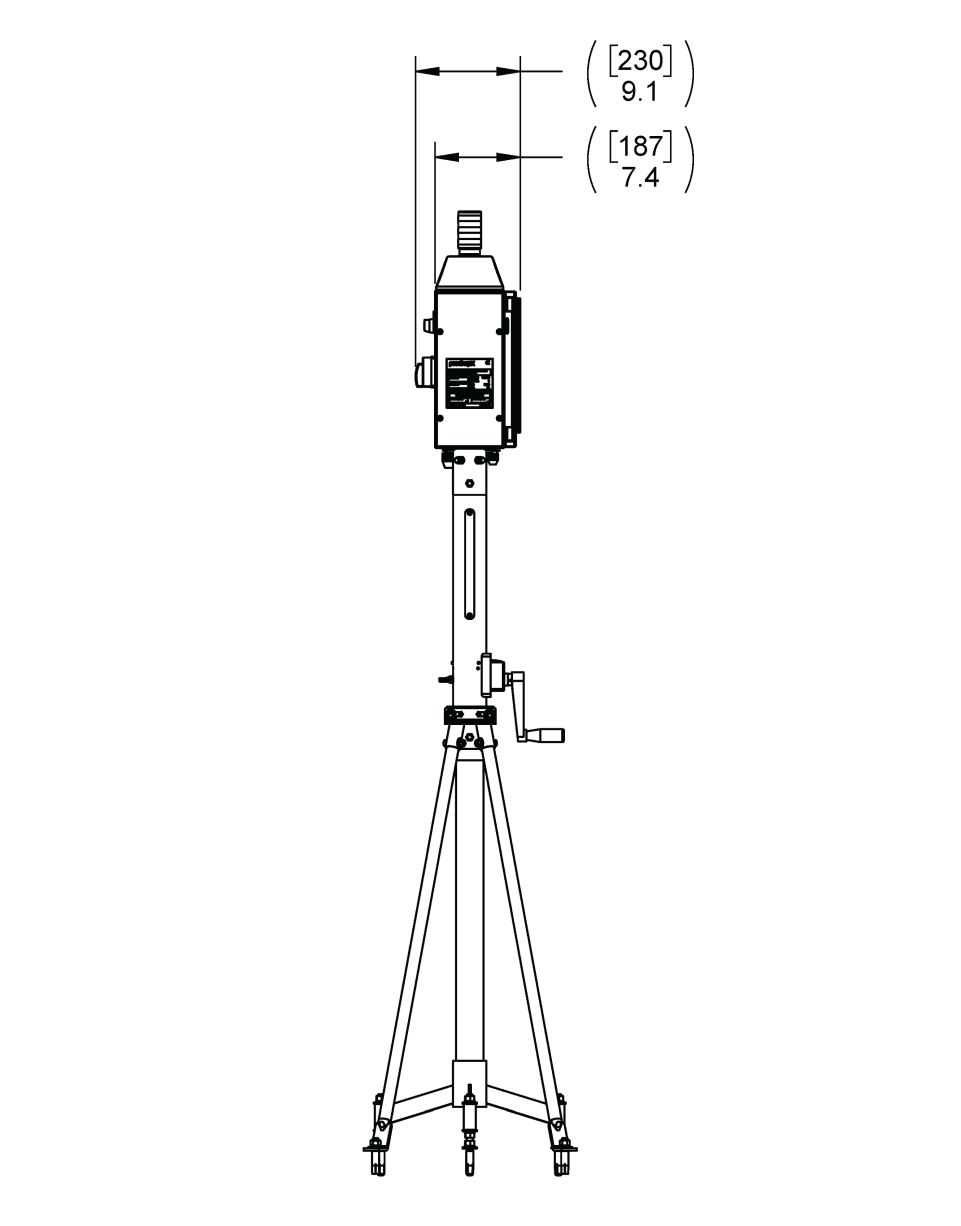

Dimensions (LxDxH)

9 x 30 x 47 in (229 x 762 x 1,194 mm)

Safety Rating

Redundant – Category 4, Performance Level E

Computer

Industrial PC - Windows Embedded

Connectivity

Integrated WiFi, Ethernet or Cellular Connection

Supported SCADA Systems

Programmable digital outputs available

Operator Interface

8" touchscreen

Construction

Standard: 304 Stainless Steel

Optional: 316L/Passivated

tech-specs-img tech-specs-img

Options

Cocked/Missing Cap Detection

The cocked/missing cap sensor for plastic closures is an inexpensive way to ensure that containers are properly capped

Missing Foil Detection

The missing foil sensor verifies the presence of foil seals under caps

Full Range of Ejection Options

Peco InspX designs and manufactures a wide range of high performance ejectors and diverters to include single solonoid, multiple solonoid, swing arm, lift gate, drop gate, air blast, flexible rail, guided path, and heavy duty options

Reject Management Package

Reject Management Package include secure options:

  • Lockable reject bin to ensure authorized access to rejected packages
  • Sensors to ensure positive confirmation on expected rejects
  • Sensors to alert on “bin full” condition
  • Air pressure sensor to alert for any out-of-range air supply problems
  • Optional software-controlled lock for user configurable access

Sanitary Design

Can be equipped with an IP69K enclosure for high pressure wash down environments

Remote Operator Console

The remote operator console provides complete system monitoring and control up to 6 meters from the system inspection assembly
