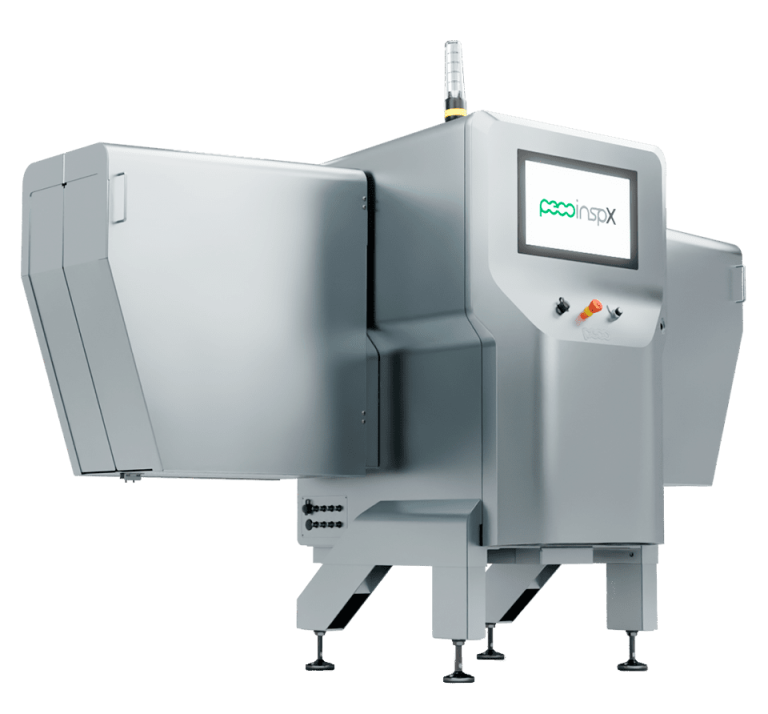

SHIELD Trio

A triple beam side view inspection system for glass containers



Request details

Key Stats

X-ray tube
Triple beam metal ceramic
Metal detection size
0.8 mm SS
Glass detection size
1.5 mm SLG
Speed
Up to 233 m/minute

Typical Applications

Glass food jars
Glass beverage containers
Glass detection in metal cans

The Trio offers inspection rates >1,000 containers/minute

Peco-InspX offers two high performance glass-in-glass X-Ray inspection systems: the SHIELD Trio and the ScanTrac Glissando. The Trio offers very high speed (> 1,000 containers per minute) non-contact container inspection.

The Trio leverages 3 X-Ray beams powered from a single X-Ray tube to provide 3 individual “looks” at each container, which allows optimal detection of asymmetric pieces of foreign material such as glass shards.

The Glissando offers higher inspection performance but requires the transfer of containers onto the machine’s internal conveyor.

Customers are encouraged to consult with a Peco-InspX sales specialist to determine which machine is best suited for their application.

Tech Specs

Machine Architectures Side-view X-Ray system
X-Ray Tube Configuration One metal ceramic tube – three X-Ray beams
Product/Package Size Width: 175mm (7 inches)

Height: 300mm (12 Inches)
Environment IP 65 (IP 69K optional)
Speed Up to 198m/minute (650 ft/minute)
Voltage Without AC: System 120-230V @ 1.8kVA, 50/60 Hz single phase

With AC: System 120-230V @ 3.6kVA, 50/60 Hz single phase
Air 80psi @5cfm (for ejection only)
Temperature 1°C – 40°C (up to 45°C with optional air conditioner)
Container Ejection Full family of ejection options available
Dimensions (LxWxH) 1499 x 2743 x 1524 mm

Features

3 Beams Powered by a Single X-Ray Tube

The Trio offers the power of 3 X-Ray beams with the simplicity of a single X-Ray tube. This design offers maximized performance with minimum cost of ownership.

Small Line Footprint

The Trio is the smallest footprint dedicated glass X-Ray inspection system available on the market today. The Trio requires less than 3 meters (9 feet) of linear line space and certain applications require even less space.

High Reliability Non-Contact Inspection

Because the Trio mounts over the top of the customer’s existing conveyor, this means that there are absolutely no conveyor transfers into the machine for inspection. This design minimizes risk against conveyor jams over transfer points.

HDRX Inspection Software

Peco-InspX high resolution inspection software or HDRX is the most advanced automated inspection software available today. The software features algorithms for:

  • Fill Level
  • Headspace Calculation
  • Void Detection
  • 15 Different Foreign Material Inspections
  • Dent Detection
  • Cap and Lid Detection
  • Mass Measurement
Category 4 Safety Features

Each Peco-InspX X-Ray system is designed to meet the most rigorous worldwide safety standards.

24x7 Support

While many inspection equipment providers offer some form of remote support, only Peco-InspX can confidently demonstrate that we quickly resolve over 95% of customer issues with our powerful remote diagnostics software.

Options

Operations Guardian

Operations Guardian is a revolutionary monitoring system that offers a variety of advantages:

  • Real time system and performance monitoring of each machine
  • Proactive outreach from Peco-InspX service when problems occur
  • Insight into operational performance bottlenecks
  • Automatic archiving and classification of reject images
  • Optional archiving of all inspection images
Custom Engineering Solutions

Because Peco-InspX is a dedicated manufacturer of automated inspection equipment, we bring a wealth of engineering expertise on an almost unlimited number of inspection applications. If you have a unique inspection requirement, please talk to us.

IP69K Enclosure

The Trio can be equipped with an IP69K enclosure for high pressure wash down environments.

Remote Operator Console

The remote operator console provides complete system monitoring and control up to 6 meters from the system unit.

Diverse Ejection Options

Peco-InspX offer over 15 distinct ejection solutions to handle any application. All diverters and ejectors are designed and built in California, USA.
